APPLICATION
Suitable for all gas and liquid media that will not obstruct the pressure system or attack copper alloy parts
.Useful for system that are not submited to strong vibrations . Specially designed for pneumatic hydraulics .
For heating, plumbing

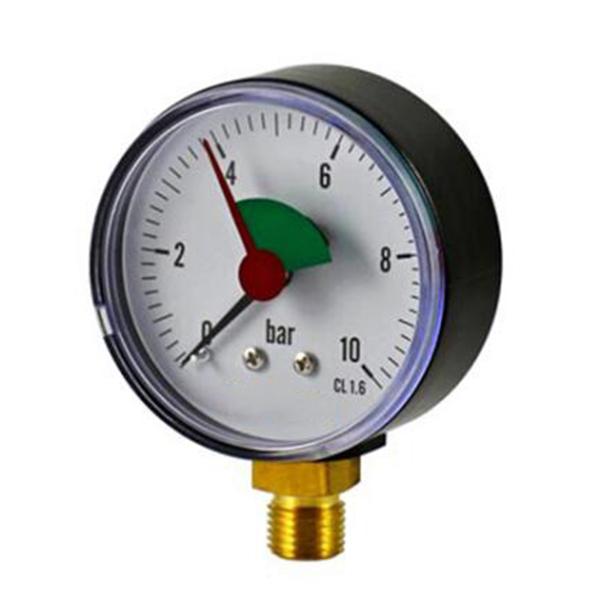

Case : ABS case ,Plastic window with red pointer & green sector printing
Wetted parts: brass
Standard : EN837 or DIN
Quality :100% inspected
Options/Notes: Lower or back entry
Specifications:
Dial | 1.5” (40mm) 2”(50mm)2.5” (63mm) |
Case | ABS CASE |
Lens | plastic window with red pointer & green sector printing |
Ring | |
Socket | Brass |
Connection | 1/8” 1/4” 1/2 BSP /NPT /BSPT / G standard |
Bourdon Tube | Phosphor bronze, |
Movement | Brass |
Pointer | Aluminum, black |
Over-Pressure Limit | 25% |
Accuracy | ±2.5% |
Welding | Copper alloy |
Enclosure Rating | IP43 Teflon self-sealing connection thread for option |
