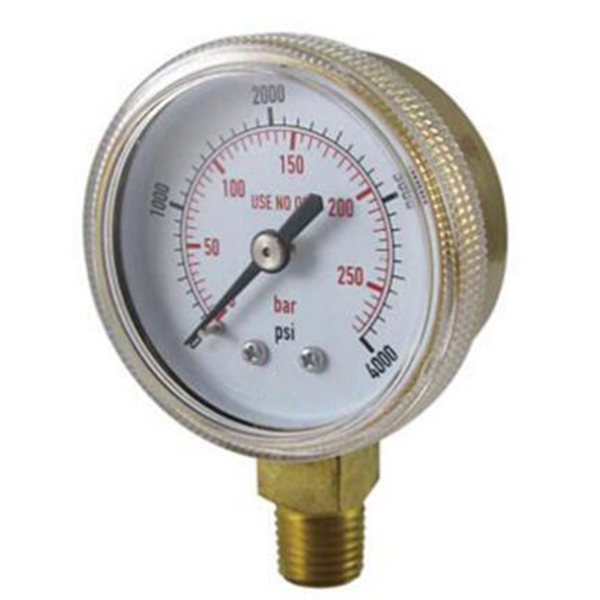

Regulator gauge for Oxygen Gas
APPLICATION
For Welding, cutting and related industry
Case : Gold painted steel case
Wetted parts: brass
Standard : EN837 or DIN
Quality :100% inspected
Options/Notes:
Specifications:
Dial | 2”(50mm) 68mm |
Case | steel case |
Lens | Gold painted steel case |
Ring | |
Socket | Brass |
rang | 0-6bar / 0-315 bar /0-250bar /0-280bar /psi |
Connection | 1/4" NPT |
Bourdon Tube | Phosphor bronze, |
Movement | Brass |
Pointer | Aluminum, black |
Over-Pressure Limit | 25% |
Accuracy | ±2.5% |
Welding | Copper alloy |
Enclosure Rating | IP43 |
Process | USE NO OIL |
