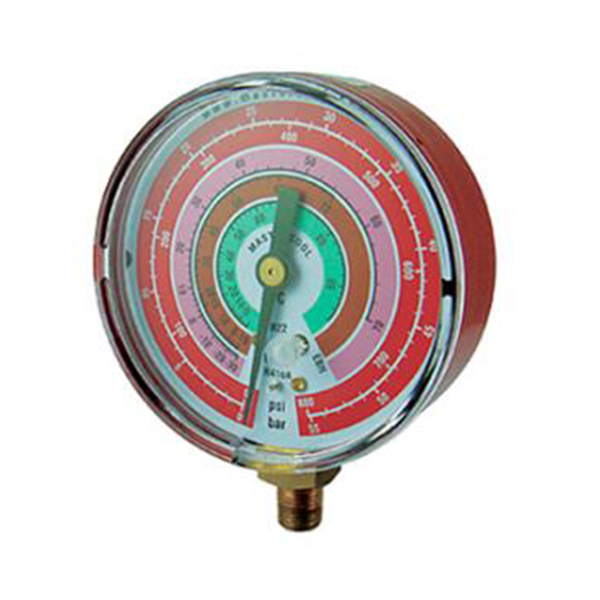

APPLICATION
Designed for refrigeration systems ,Suitable for all liquid media that will not attack copper alloy parts .Useful for systems where the gauge is not subjected to vibrations
For refrigeration service
Case : blue /red threaded ABS case
Wetted parts: brass
Standard : EN837 or DIN
Quality :100% inspected
Options/Notes: Micro-adjustable pointer
Refrigeration scale available with R134a, R404, R12, R22 etc
Specifications:
Dial | 68mm |
Case | blue /red steel case |
Lens | Snap on plastc acrylic |
Ring | |
Socket | Brass |
rang | -1/+35bar |
Connection | 1/8" NPT |
Bourdon Tube | Phosphor bronze, |
Movement | Brass |
Pointer | Aluminum, black |
Over-Pressure Limit | 25% |
Accuracy | ±2.5% |
Welding | Copper alloy |
Enclosure Rating | IP >43 |
