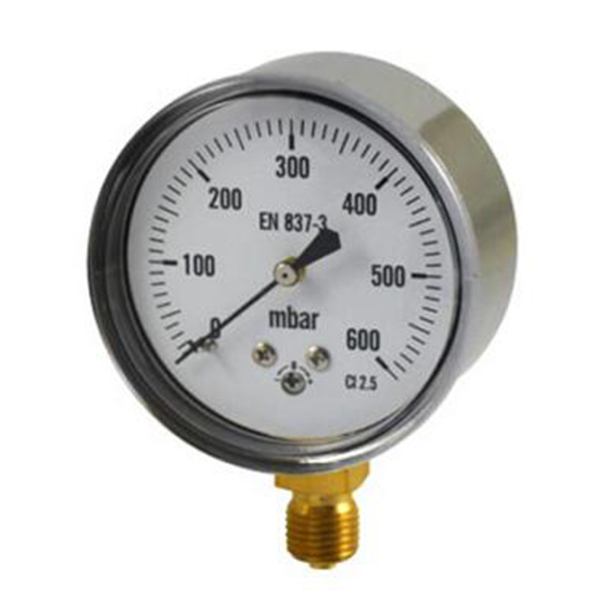

APPLICATION
Gaseous and dry media
Case : chrome plated steel case
Wetted parts: brass
Standard : EN837 or DIN
Quality :100% inspected
Options/Notes: Lower or back entry, Ø 50 only back, Ø 100 lower,Ø63 available with panel mounting
Specifications:
Dial | Ø(50, 63, 100, ) |
Case | Steel case chrome plated |
Lens | Polycarbonate 100mm with bezel ring |
Ring | |
Socket | Brass |
rang | -600-0. 0-25 to 600mbar |
Connection | 1/8"Ø(50) 1/4"Ø(50-100) |
Bourdon Tube | Bronze capsule |
Movement | brass |
Pointer | Aluminum, black |
Over-Pressure Limit | 25% |
Accuracy | ±3% |
Welding | |
Enclosure Rating | IP43 |
