1. APPLICATION
Suitable for all gas and liquid media that will not obstruct the pressure system or attack copper alloy parts. Specially designed for difficult conditions of use, as there are vibrations or quick changes of pressure. Also useful for adverse ambients.

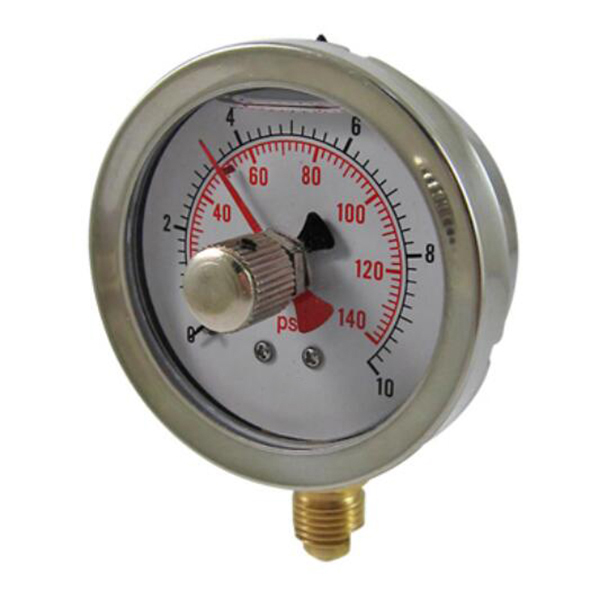

Designation | Stainless steel case, bayonet ring, liquid fillable with red pointer |
Applications | Adverse service conditions where pulsation or vibration exists |
Nominal size: (mm) | Ø(63, 100) |
Scale ranges | - 1 to 600 bar |
Accuracy class | 1.6 Ø (63) 1 Ø (100) |
Pressure connection | 1/4" Ø(50, 63), 1/2"( 100) |
Wetted parts | Copper alloy |
Case material | Stainless Steel, bayonet ring |
Window | Toughened glass |
IP class | IP 65 |
Options/notes | Lower, back entry, panel mount or surface mount |
