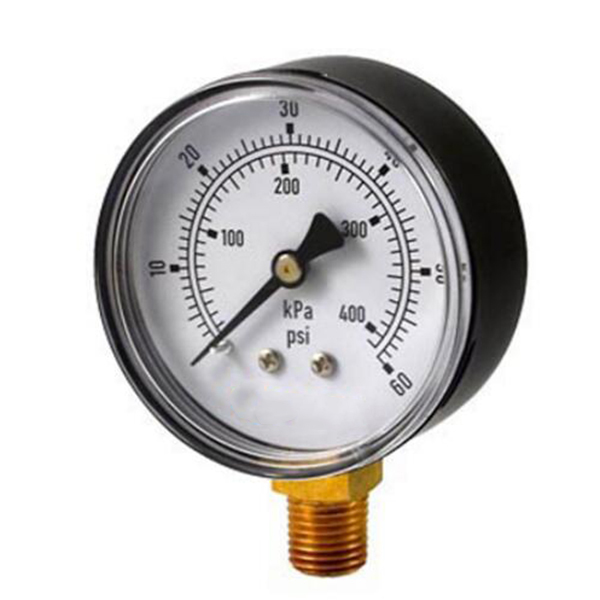

Dry pressure gauge ABS case snap in plastic window bottom entry
1. APPLICATION
Suitable for all gaseous and liquid media that will not obstruct the pressure system or attack copper alloy parts .Specially designed for pneumatic, heating ,climate,ventilation
Case : Black ABS case
Len : snap in plastic window
Wetted parts: brass
Standard : EN837 or DIN
Quality :100% inspected
Options/Notes: Lower or back entry;
Specifications:
Dial | 1.5” (40mm)2”(50mm) 2.5” (63mm), 4” (100mm) |
Case | ABS |
Lens | Acrylic plastic |
Ring | / |
Socket | Brass |
Connection | 1/8” 1/4” 1/2 BSP /NPT /BSPT / G standard |
Bourdon Tube | Phosphor bronze, |
Movement | Brass |
Pointer | Aluminum, black |
Over-Pressure Limit | 25% |
Accuracy | ±2.5% ±1.6% |
Welding | Copper alloy |
Enclosure Rating | IP43 |
