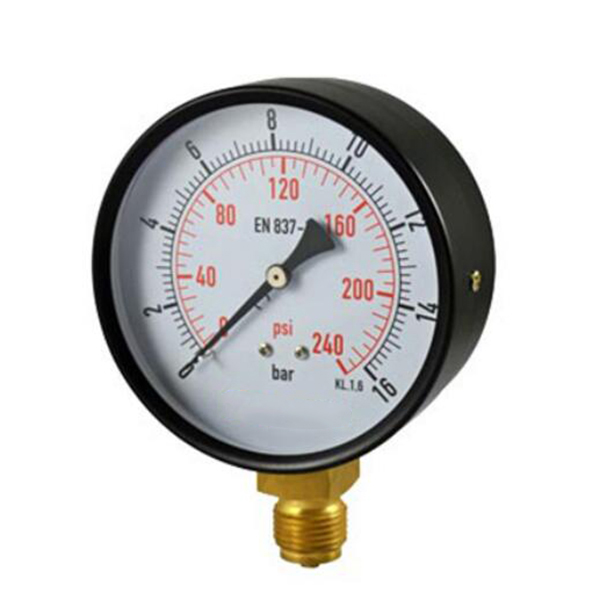

1. APPLICATION
Suitable for all gas and liquid media that will not obstruct the pressure system or attack copper alloy parts
.Useful for system that are not submited to strong vibrations . Specially designed for pneumatic hydraulics .
Case : Black steel case
Wetted parts: brass
Standard : EN837 or DIN
Quality :100% inspected
Options/Notes: Lower or back entry;panel mount or surface mount. Black steel bezel as option
Specifications:
Dial | 2.5” (63mm), 4” (100mm) 6”(150mm) 8” (200mm) |
Case | Steel, painted black |
Lens | Glass / plastic |
Ring | Steel, painted black fixed with screws |
Socket | Brass |
Connection | 1/4” 1/2 BSP /NPT /BSPT / G standard |
Bourdon Tube | Phosphor bronze, |
Movement | Brass |
Pointer | Aluminum, black |
Over-Pressure Limit | 25% |
Accuracy | ±2.5% |
Welding | Copper alloy |
Enclosure Rating | IP43 |
