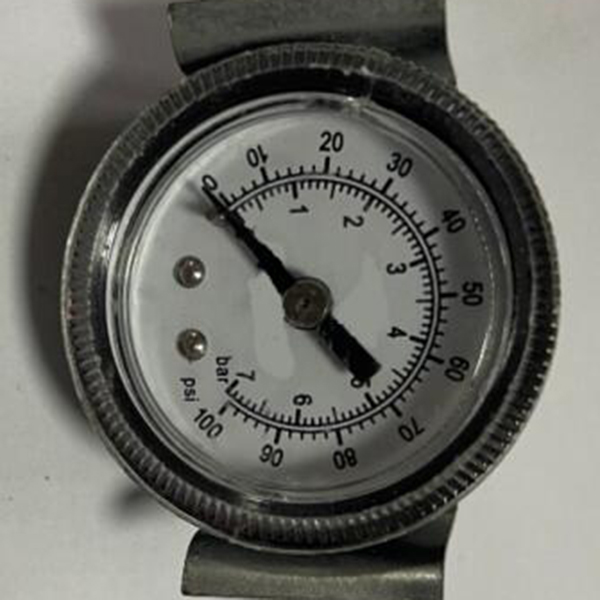

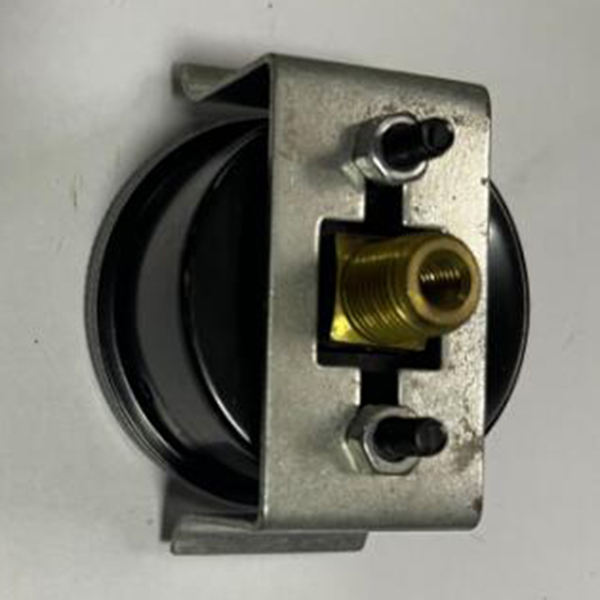

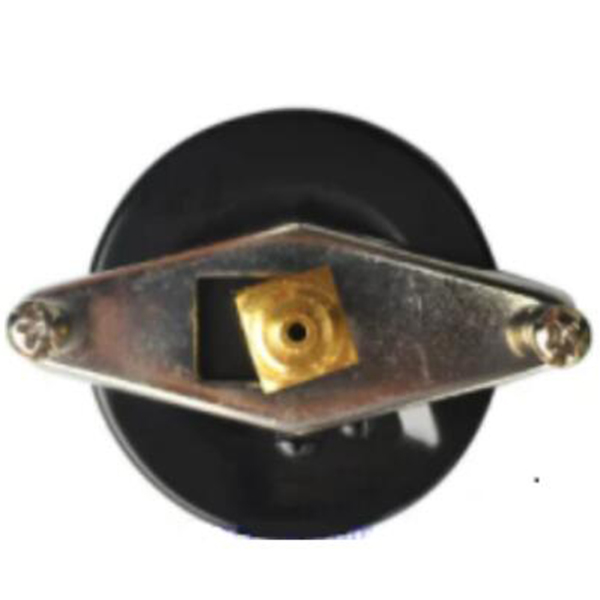

Dry manometer back connection with U clamp
APPLICATION
Suitable for all gas and liquid media that will not obstruct the pressure system or attack copper alloy parts.
Useful for system that are not submited to strong vibrations . Specially designed for pneumatic hydraulics .
Case : stainless steel case , black steel case
Wetted parts: brass
Standard : EN837 or DIN
Quality :100% inspected
Options/Notes: back entry with u clamp
Specifications:
Dial | 1..5” 2”(50mm)2.5” (63mm) |
Case | Black steel case |
Lens | Screw in plastic window |
Ring | Stainless steel roll ring as option |
Socket | Brass |
Connection | 1/8” 1/4” /NPT /BSPT / G standard with u clamp |
Bourdon Tube | Phosphor bronze, |
Range | Vacuum to 600bar |
Movement | Brass |
Pointer | Aluminum, black |
Over-Pressure Limit | 25% |
Accuracy | ±2.5% |
Welding | Copper alloy |
Enclosure Rating | IP43 |
