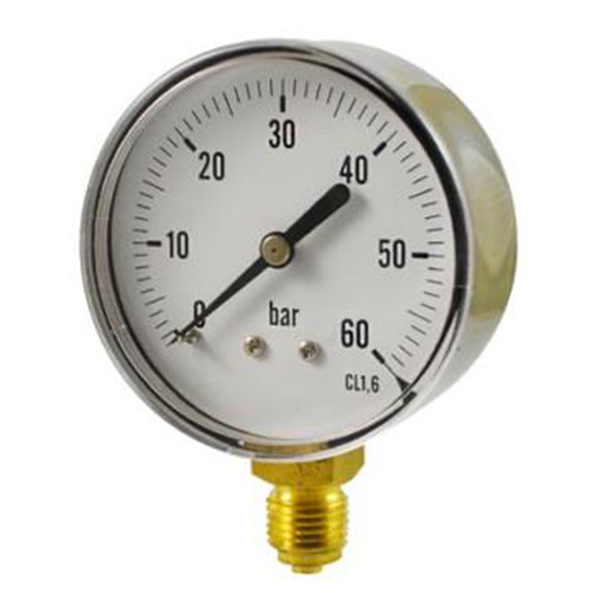

APPLICATION
Suitable for all gas and liquid media that will not obstruct the pressure system or attack copper alloy parts.
Useful for system that are not submited to strong vibrations . Specially designed for pneumatic hydraulics .
For regulator
Case : stainless steel case , black steel case
Wetted parts: brass
Standard : EN837 or DIN
Quality :100% inspected
Options/Notes: Lower or back entry
Specifications:
Dial | 2”(50mm)2.5” (63mm) |
Case | stainless steel case , black steel case ,Chrome plated case as option, |
Lens | Snap on plastic window |
Ring | |
Socket | Brass |
Connection | 1/8” 1/4” /NPT /BSPT / G standard |
Bourdon Tube | Phosphor bronze,under 100 bar Use C type tube . high pressure above 100bar use spring type tube . |
Movement | Brass |
Range | 0-60psi/ 0-315bar |
Pointer | Aluminum, black |
Over-Pressure Limit | 25% |
Accuracy | ±2.5% |
Welding | Copper alloy |
Enclosure Rating | IP43 |
