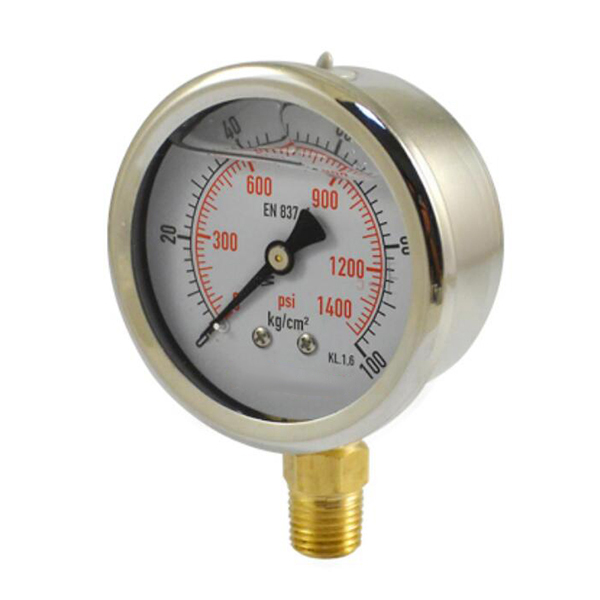

1. APPLICATION
Suitable for all gas and liquid media that will not obstruct the pressure system or attack copper alloy parts. Specially designed for difficult conditions of use, as there are vibrations or quick changes of pressure. Also useful for adverse ambients.
DETAILS:
Specification | Parameters |
Regular Specification | 1.5",2",2.5",4" |
Connection Thread | 1.5 ",connector thread 1/8 |
2",2.5", connector thread 1/4 | |
4", connector thread 1/2 | |
Pressure Range | -1-0，0-400 bar |
Pressure range of compound | -1-24 bar |
Environmental temperature | -40-60℃ |
Material | 304 Stainless steel case and roll ring, polycarbonate window. Copper bourdon tube and connection, brass movement, |
Standard of joint thread | BSP /NPT /BSPT / G standard |
Liquid filled medium | Glycerin or silicone oil |
