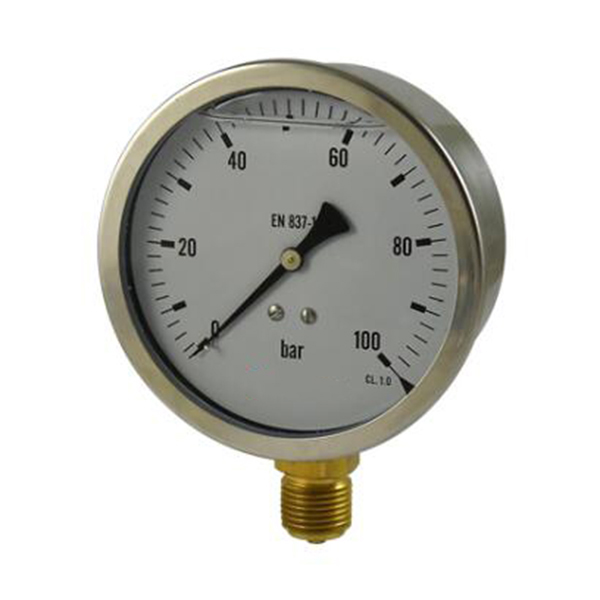

Hydraulic one piece seal design pressure gauge

Product Details

Hydraulic one piece seal design pressure gauge



1. APPLICATION

Suitable for all gas and liquid media that will not obstruct the pressure system or attack copper alloy parts. Specially designed for difficult conditions of use, as there are vibrations or quick changes of pressure. Also useful for adverse ambients.



DETAILS

Designation

Stainless steel case, crimped ring, liquid fillable

Applications

Adverse service conditions where pulsation or vibration exists

Nominal size: (mm)

Ø(50, 63, 75, 100)

Scale ranges

- 1 to 600 bar

Accuracy class

2.5 Ø (40-50), 1.6 Ø (63-100)

Pressure connection

One piece sealing design 1/4" Ø(50, 63, 75, 100) 1/2" Ø(100)

Wetted parts

Copper alloy

Case material

Stainless Steel, crimped ring

Window

Polycarbonate or toughened glass

IP class

IP 65

Options/notes

Lower, back entry, Ø 63 and Ø100 with option of panel mount or surface mount
Refrigeration scale
