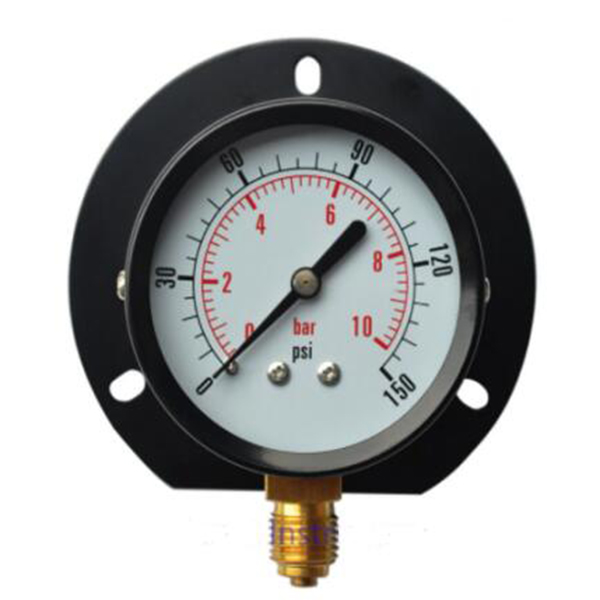

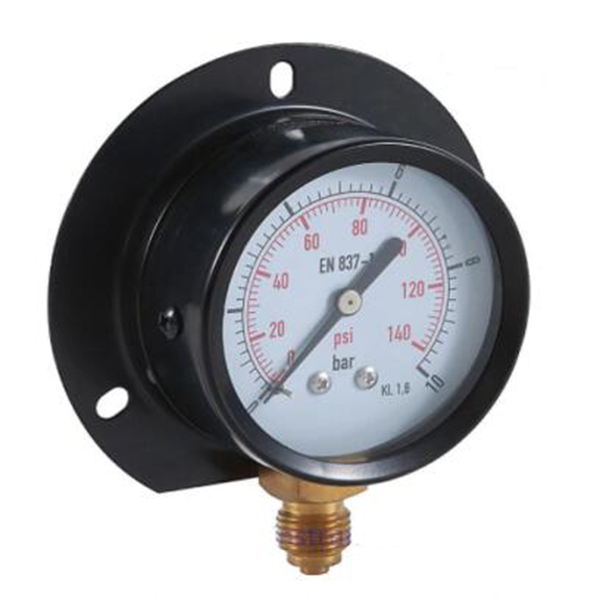

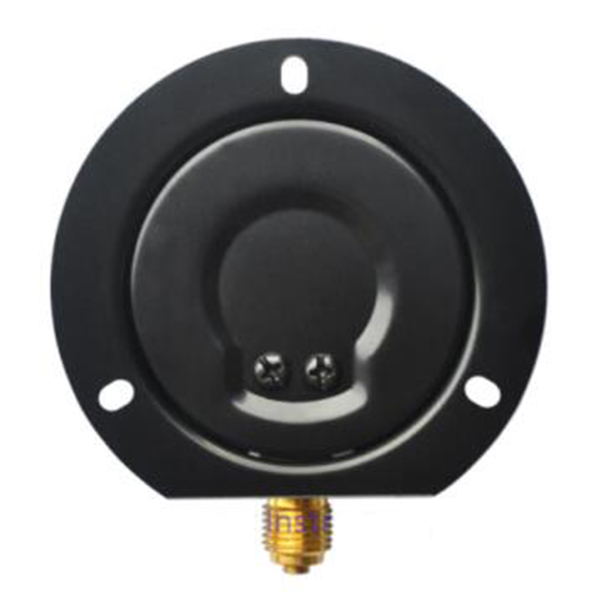

Utility manometer in black steel case bottom connection with front flange
1. APPLICATION
Suitable for all gas and liquid media that will not obstruct the pressure system or attack copper alloy parts.
Useful for system that are not submited to strong vibrations . Specially designed for pneumatic hydraulics .
Case : Black steel case
Wetted parts: brass
Standard : EN837 or DIN
Quality :100% inspected
Options/Notes: Lower or back entry;panel mount or surface mount. Black steel bezel as option
Specifications:
Dial | 2.5” (63mm), 4” (100mm) |
Case | Steel, painted black |
Lens | Glass / plastic |
Ring | Steel, painted black with front flange |
Socket | Brass |
Connection | 1/4” 1/2 BSP /NPT /BSPT / G standard |
Bourdon Tube | Phosphor bronze, |
Movement | Brass |
Pointer | Aluminum, black |
Over-Pressure Limit | 25% |
Accuracy | ±2.5% |
Welding | Copper alloy |
Enclosure Rating | IP43 |
