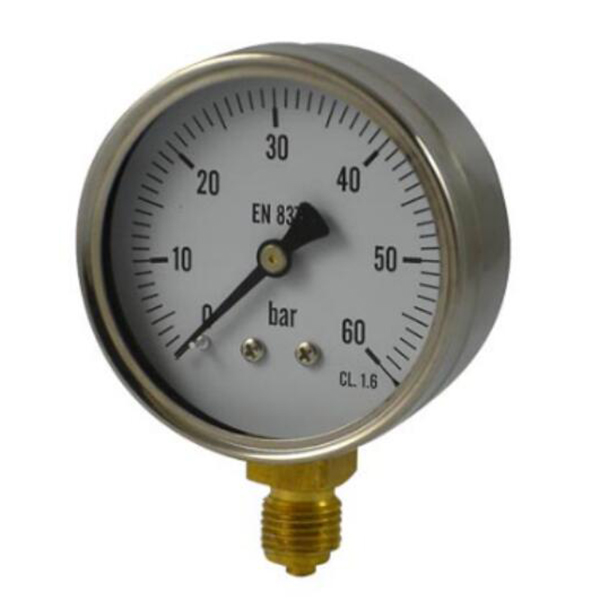

Dry Pressure gauge in stainless steel case and bezel bottom entry
1. APPLICATION
Suitable for all gas and liquid media that will not obstruct the pressure system or attack copper alloy parts.
Useful for system that are not submited to strong vibrations . Specially designed for pneumatic hydraulics .
Case : stainless steel case and bezel
Wetted parts: brass
Standard : EN837 or DIN
Quality :100% inspected
Options/Notes: Lower or back entry;panel mount or surface mount. Black steel bezel as option
Specifications:
Dial | 1.5” (40mm) 2”(50mm)2.5” (63mm), 4” (100mm) |
Case | Stainless steel |
Lens | Glass / plastic |
Ring | Stainless steel bezel |
Socket | Brass |
Connection | 1/4” 1/2 BSP /NPT /BSPT / G standard |
Bourdon Tube | Phosphor bronze, |
Movement | Brass |
Pointer | Aluminum, black |
Over-Pressure Limit | 25% |
Accuracy | ±2.5% |
Welding | Copper alloy |
Enclosure Rating | IP43 |
