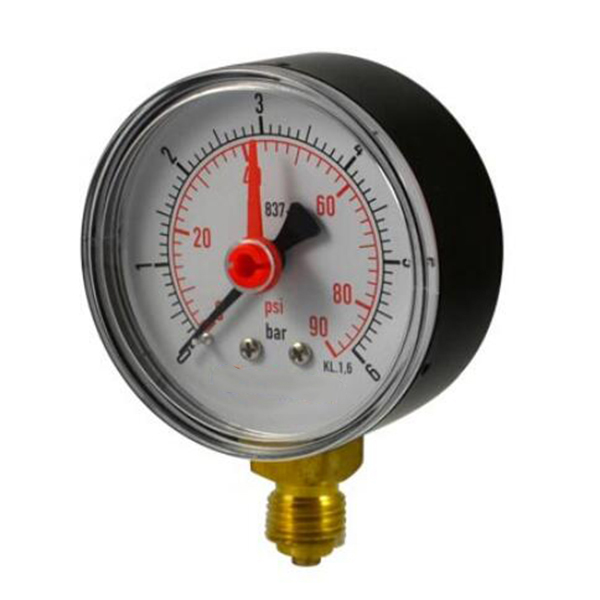

Dry Pressure gauge with red pointer
APPLICATION
Suitable for all gas and liquid media that will not obstruct the pressure system or attack copper alloy parts.
Useful for system that are not submited to strong vibrations . Specially designed for pneumatic hydraulics .
Case : ABS case ,Plastic window with red pointer
Wetted parts: brass
Standard : EN837 or DIN
Quality :100% inspected
Options/Notes: Lower or back entry
Specifications:
Dial | 1.5” (40mm) 2”(50mm)2.5” (63mm), 4” (100mm) |
Case | ABS CASE |
Lens | plastic with red pointer |
Ring | |
Socket | Brass |
Connection | 1/8” 1/4” 1/2 BSP /NPT /BSPT / G standard |
Bourdon Tube | Phosphor bronze, |
Movement | Brass |
Pointer | Aluminum, black |
Over-Pressure Limit | 25% |
Accuracy | ±2.5% |
Welding | Copper alloy |
Enclosure Rating | IP43 |
